Product Description

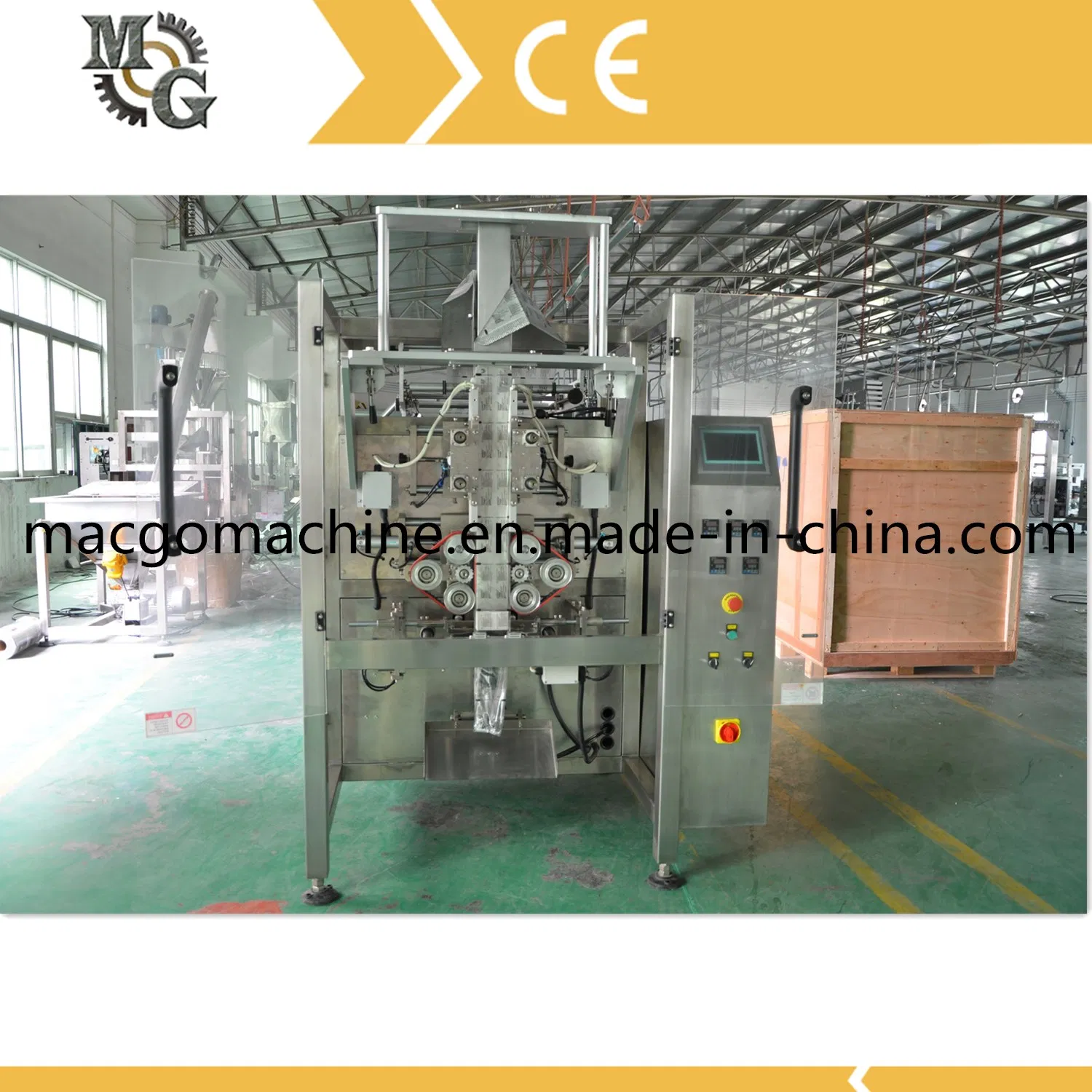

Vertical Packing Measuring Machine
Technical characteristics:
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting and finished in one operation.
2. Box-packaging bag is more niceties.
3. Servo motors control the carrying film, high precision orientation, size more nicety.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. The process of vertical sealing can adjust the volume deviation automatically, greatly saving the labor force to a great extend.
6. Stand bag with burns edges, 4 sides seal edges, novelty and slap-up, and the mainstream bag shape.
Function
Completely automatic weighing, filling, film-pulling, bag-making, bag-punching (holing), printing, and quantity-counting
Technical parameters:
Application
It is suitable for packing granule and power, such as peanuts, rice, chocolate pralines and bonbons within 2000ml.
Product Picture&Other Product:
Our Service:
Technical characteristics:
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting and finished in one operation.
2. Box-packaging bag is more niceties.
3. Servo motors control the carrying film, high precision orientation, size more nicety.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. The process of vertical sealing can adjust the volume deviation automatically, greatly saving the labor force to a great extend.
6. Stand bag with burns edges, 4 sides seal edges, novelty and slap-up, and the mainstream bag shape.
Function
Completely automatic weighing, filling, film-pulling, bag-making, bag-punching (holing), printing, and quantity-counting
Technical parameters:
| Model | SGM-5240 |
| Measuring range | 2000ml(Max) |
| Front width | 100-180(mm) |
| Side width | 50-90(mm) |
| With of side seal | 5-10(mm) |
| Bag height | 100-350(mm) |
| Packaging speed | 10-50(bags/min) |
| Packing material | OPP/CPP OPP/CE PET/PE etc. complex film |
| Max width of film roll | 520mm |
| Voltage | 220V AC/50HZ |
| Total power | 5.5KW |
| Dimension | 1500(L)x1220(W)x1800(H)mm |
| Machine weight | 750Kg |
It is suitable for packing granule and power, such as peanuts, rice, chocolate pralines and bonbons within 2000ml.
Product Picture&Other Product:
Our Service:
- Customized machine is available
- One year guarantee
- Engineer oversea service is available
- Provide the permanent components, technology support, quick response to after-sales service
